特 點 FEATURES
|
|
|
|
|
|
|

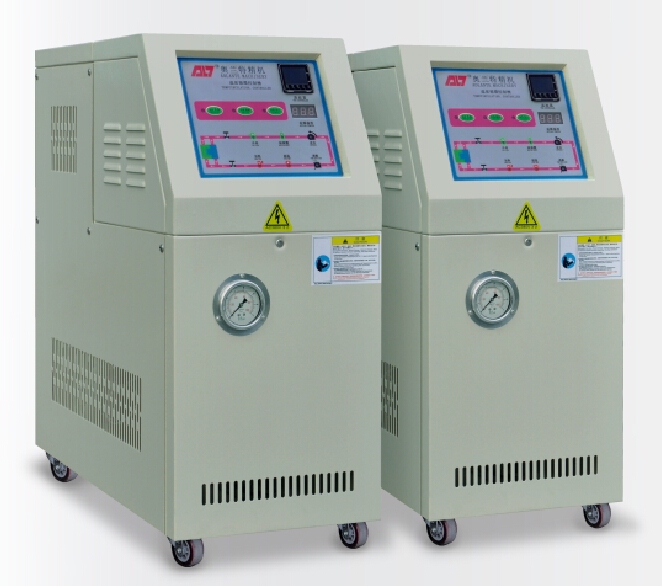

奧蘭特180℃高溫水溫機有發熱管防干燒系統，高壓防暴系統，采用進口富士接觸器，臺灣進口元新高溫水泵。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.管路防爆裝置
|
|
|
|
|
|
|
|
Explosion/proof equipment for pipelines
|
|
|
|
|
|
|
|
2.吹氣回水功能（選購）
|
|
|
|
Air blowing and return water function（optional)
|
|
|
|
3.回水溫度顯示表
|
|
|
|
Thermometer for return water
|
|
|
|
4.開機自動排氣功能
|
|
|
|
Automatic air-exhausting function after startup
|
|
|
|
5.加熱功率切換功能
|
|
|
|
Switchover of heating power
|
|
|
|
6.熱水BY-PASS泄壓回路
|
|
|
|
BY-PASS pressure release loop for hot water
|
|
|
|
7.多點溫度控制機組可訂作
|
|
|
|
Customizable multi-point temperature control unit
|
|
|
|
8.水泵馬力和加熱功率可訂作
|
|
|
|
Customizable horsepower and heating power of oil pump
|
|
|
|
9.即實時冷卻關機功能(選購)
|
|
|
|
Instant cooling return oil shut-down function (optional)
|
|
|
10.控制方式: 采用進口微電腦或(選購)PLC控制
|
|
Control mode: imported microcomputer or PLC (optional)
|
|
11.溫度控制范圍: 進水溫+30℃→180℃
|
|
Range of temperature control: +30℃→180℃ for incoming water
|
|
12.隔離式電器控制箱. 延長電器使用年限
|
|
Isolated electric box for longer services lives of electric appliances
|
|
13.RS485通訊功能, 實現自動化管理.(選購)
|
|
RS485 communication function for automated management (optional)
|
|
14.304不銹鋼一體管路,減少管阻及銹垢
|
|
304 stainless steel integrated pipelines for less pipe resistance and rust
|
|
15.電器采用OMRON. FUJI. TE. LG.MOELLR.ABB.WEST
|
|
Brands OMRON, FUJI, TE and LG.MOELLER.ABB and WEST for electric appliances
|
|
16 高壓防爆強制冷卻,泄壓
|
|
|
|
High-pressure explosion-proof forced cooling, relief-pressure
|
|
17.安全保護完善,故障顯示, 維修.保養無需專業人員
|
|
Perfect safety protection, fault display, easy repair and maintenance even without professionals
|
|
|
|
規格SPEIFICATIONS
|
|
|
|
|
|
|
|
|
|
|
|
模型Model
|
單位UNIT
|
TWH-10
|
TWH-20
|
TWH-30
|
TWH-40
|
TWH-50
|
|
溫控范圍 Control range
|
℃
|
180℃
|
|
溫控精度Temp.control accuracy
|
℃
|
PID±1℃
|
|
電源 Power supply
|
|
AC 3φ380V50HZ（or other)或其它
|
|
傳熱媒體Heat.transfer medium
|
|
水 Water
|
|
冷卻方式 Cooling method
|
|
間接冷卻INDIRECT C00LING
|
|
加熱能量Heating capacity
|
KW
|
9
|
12
|
18
|
24
|
24/36
|
|
泵浦馬力（功率）Horsepower of Pump
|
HP/KW
|
0.5/0.37
|
0.5/0.37
|
1/0.75
|
1/0.75
|
2/1.5
|
|
泵浦工作流量Working flow of pump
|
L/MIN
|
35
|
35
|
100
|
100
|
180
|
|
泵浦工作壓力Working pressure of pump
|
KG/C㎡
|
2
|
2
|
2.2
|
2.2
|
2.4
|
|
大電力消耗Maximum power consumption
|
KW
|
6.5
|
6.5
|
10
|
10
|
11
|
|
警報功能 Alarm function
|
|
缺相/缺水/超溫/過載/反轉
|
|
冷卻水配管Cooing water pipework
|
INCH
|
1/2
|
1/2
|
1/2
|
1/2
|
1/2
|
|
循環水配管Circulating water pipework
|
INCH
|
3/8x4
|
3/8x4
|
3/8x4
|
1.2
|
1.2
|
|
外型尺寸External dimensions
|
MM
|
820x320x770
|
820x320x770
|
820x320x770
|
1200x500x1100
|
1200x500x1100
|
|
重量 Weighht
|
KG
|
122
|
126
|
132
|
|
|
|
以上規格如有變更，恕不另行通知，特殊規格及多機一體機型可定制。Special design upon request
|
